Sand Casting Pattern Tooling & Design Assistance

Pre-production engineering and proper alloy selection is critical before developing a final sand casting design. Leitelt Brothers Inc. offers pattern tooling and design assistance, collaborating with the design engineer for early evaluation of the parts casting feasibility. This value engineering saves time and money for our customers and their sand castings.

For pattern tooling and design assistance, contact the experts at LB Foundry, who can also help with selecting the best material and grade for your needs.

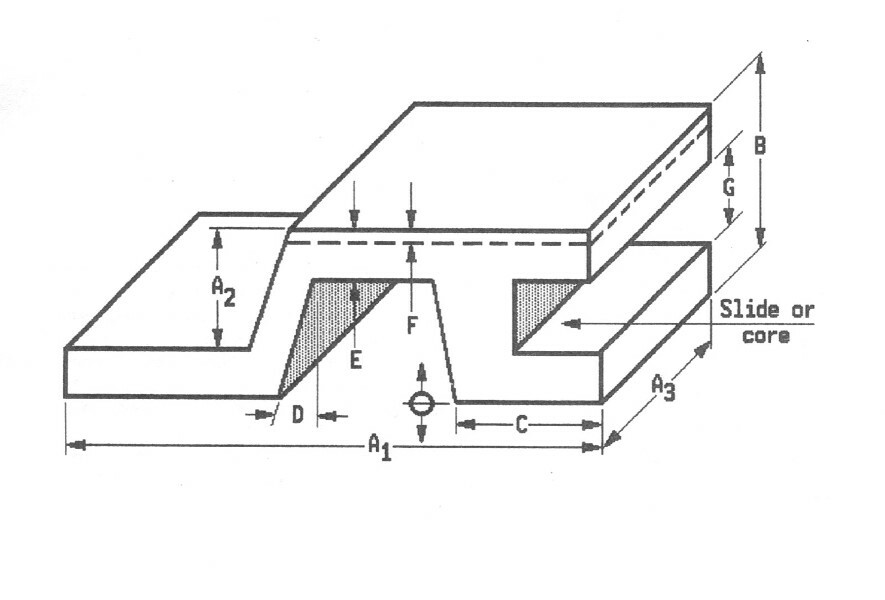

Sand Casting Design - Dimensional Tolerances

sand casting design

For Sand Casting Design - Dimensional Tolerances, you can learn more here.

File Formats Requested:

  • 3-D Data: SolidWorks (.sldprt), ProE (.prt), .stl or .igs (surfaced) files Master Cam (.mcx), IGES
  • 2-D Data: Acrobat (.pdf), SolidWorks (.slddrw) or AutoCad (.dxf files)

LB Foundry provides custom sand castings that can be produced with a variety of surface finishes, dimensional precision, finish allowances and draft. This flexibility affords engineers and manufacturers wide latitude in design to meet specific requirements, such as in the production of large castings.

We have over 100 years experience in the design and manufacture of aluminum, brass and bronze castings. We mold craftsmanship and advanced technology together to produce castings that meet the most rigid specifications.

Sand casting is the oldest method of casting. It is also the most versatile, has the lowest set up cost and is the easiest and most cost effective to modify. Because of these features, sand casting is ideally suited for making low and medium volume production castings, prototype castings and converting welded parts to castings. LB Foundry is also known for our green sand molding capabilities.

Click here to submit a Request for Quote
or call us today at 773-721-1186
